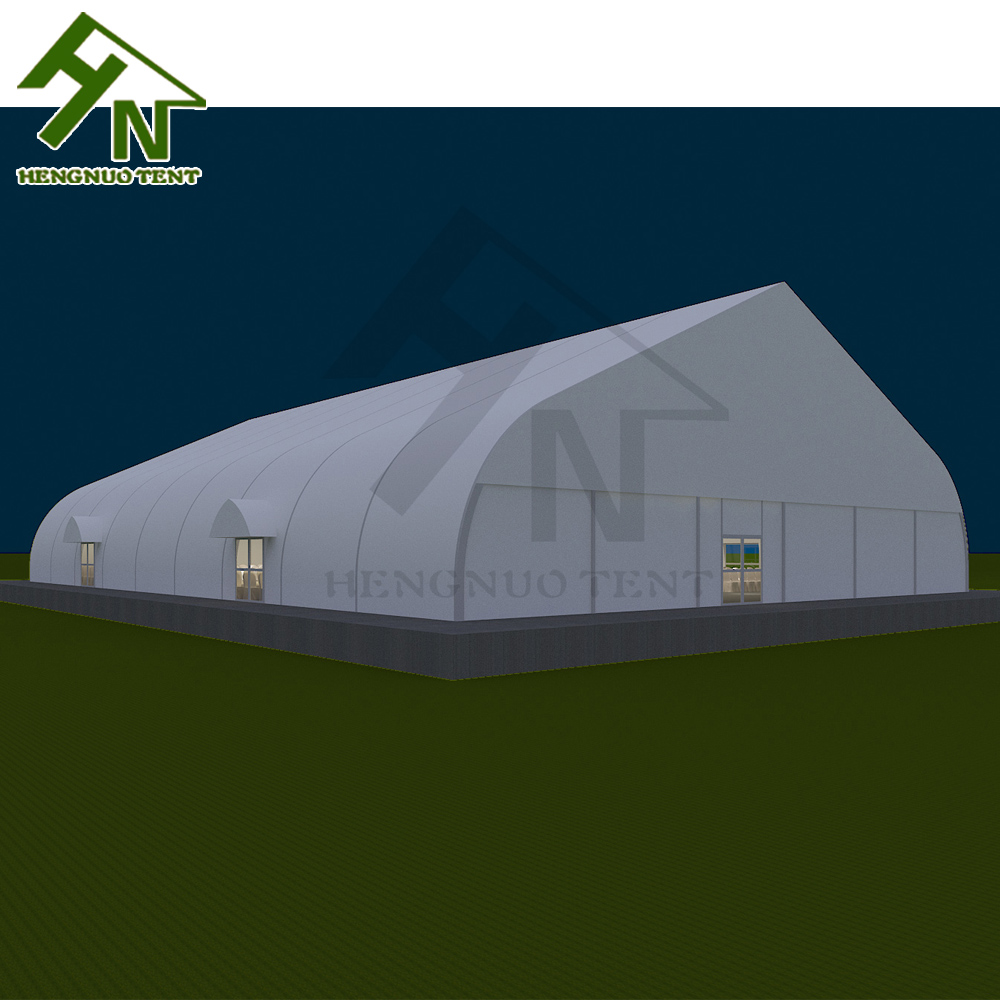

30x100m Curved Event Tent TFS Sandwich Panel Wall Giant Exhibition Hall

Name: 30x100m Curved Event Tent TFS Sandwich Panel Wall Giant Exhibition Hall
Brand: Hengnuo
Price: 50 USD

Quality 30x100m Curved Event Tent TFS Sandwich Panel Wall Giant Exhibition Hall wholesale

Brand Name : Hengnuo

Model Number : Curved -1

Certification : SGS, CE

Place of Origin : China

MOQ : 1 pc

Price : USD 50- USD 60 Per Square Meter

Payment Terms : T/T, Western Union

Supply Ability : 50000 sqm per month

Delivery Time : 10-15 days

Packaging Details : 1. Aluminum frame to be packed by membrane film then fastened together, 2.Covering fabric, component and accessories to be packed into PVC bags then fastened on plastic pallet

Color : White

Roof cover : 850g/sqm double PVC-coated polyester textile

Side wall : sandwich panel wall,PVC walls,ABS wall,glass wall

Usage : Wedding,festival,fashion show exhibition,celebration,etc.

Frame material : Aluminum AlloyT6061/T6

Application : Wedding Party / Outdoor Events / Exhibitions

Feature : Fire Retardant (DIN4102/B1/M2)

Frame : Aluminum Alloy 6061/T6

Function : Party/Wedding/Banquet/Ceremony

Wind resistance : 120 km/h

Temperature resistance : -30 degree Celsius ~ +70 degree Celsius

Contact Now

Product Description

30x100m Giant Huge Tent Hall Outdoor Exhibition Show Event TFS Curved Tents for Sale

--Easy to assemble and disassemble, we will supply installation manual and vedio after delivery.
If necessary, we can send a technician to the site to guide the installation.
Product features:
1.novel design, reasonable structure
2.with fire protection, self cleaning, anti wind and snow
3.using geodesic dome tent profiles as double as the top PVC waterproof tarpaulin cloth

30x100m Curved Event Tent TFS Sandwich Panel Wall Giant Exhibition Hall

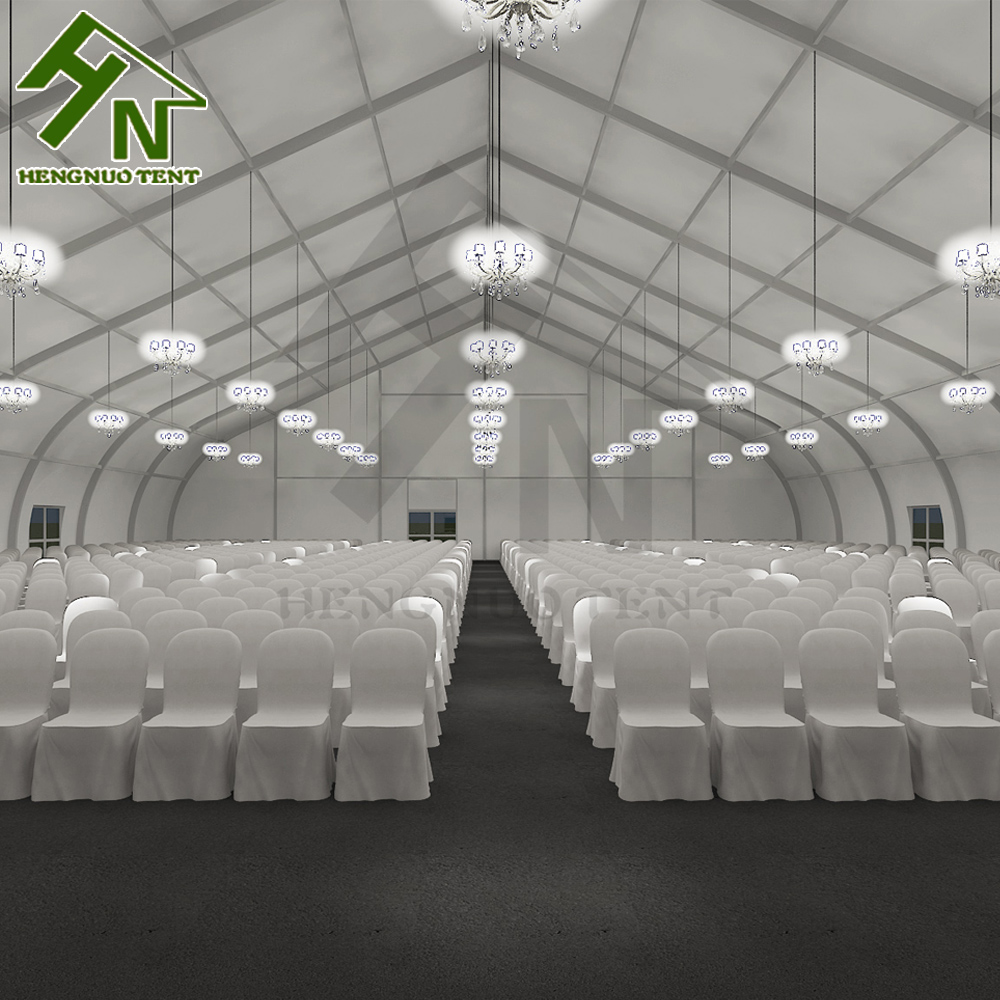

Detailed Images

MORE APPLICATION

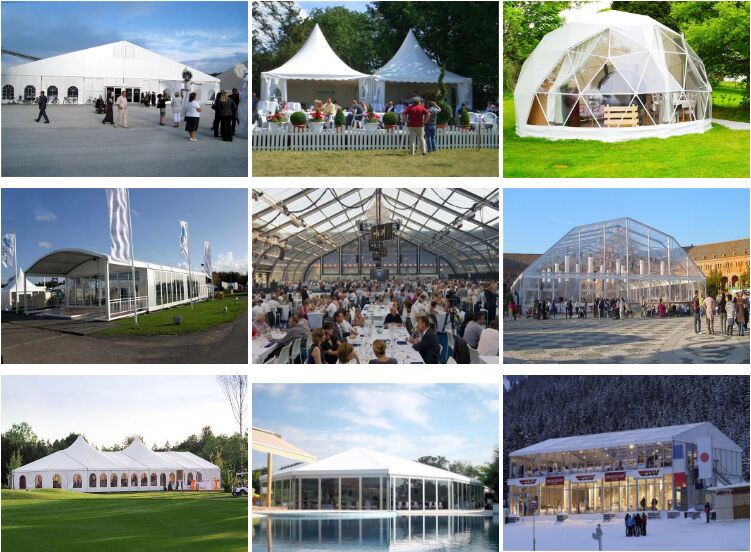

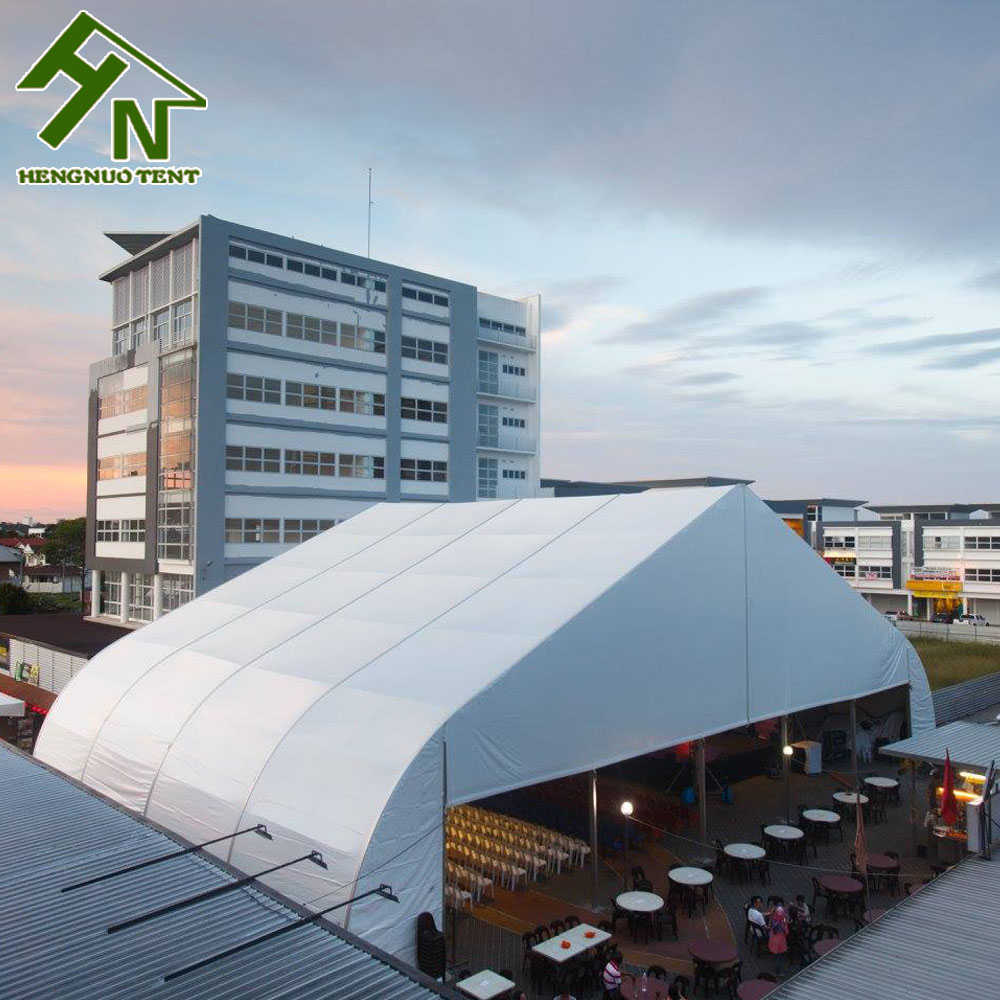

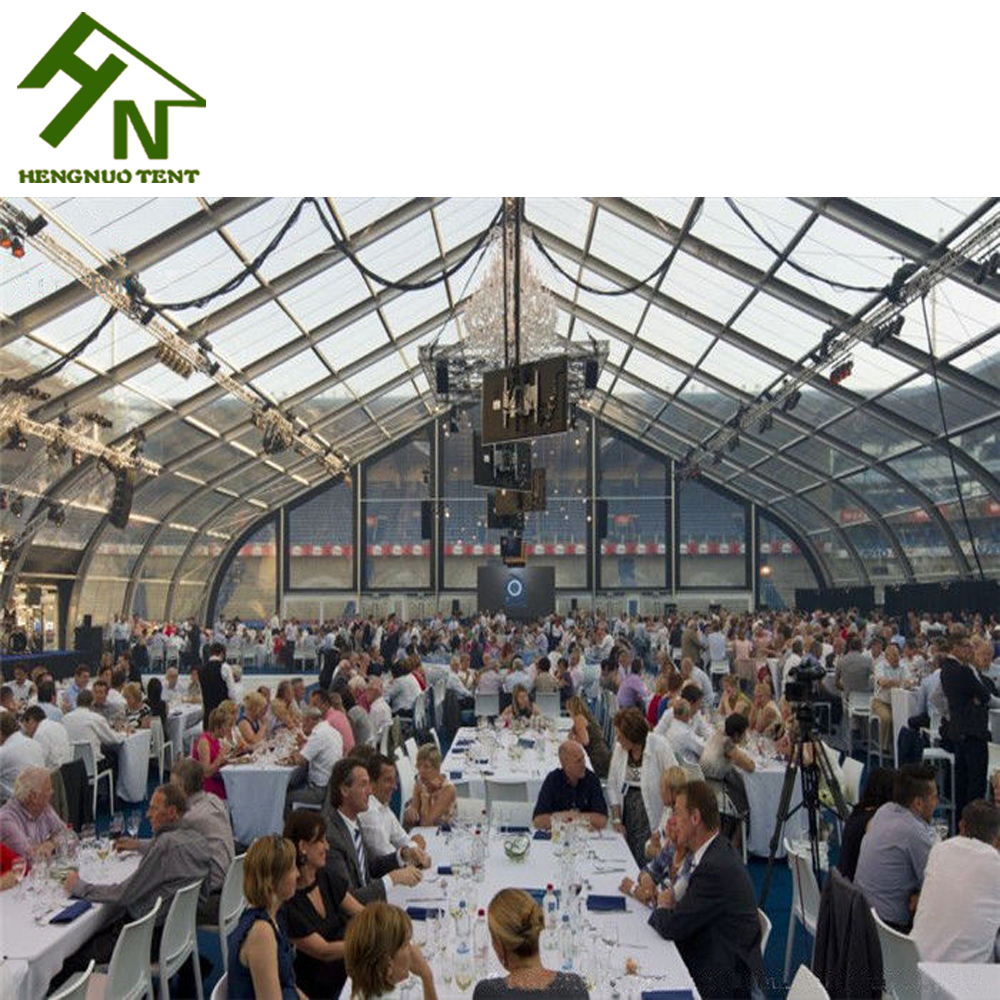

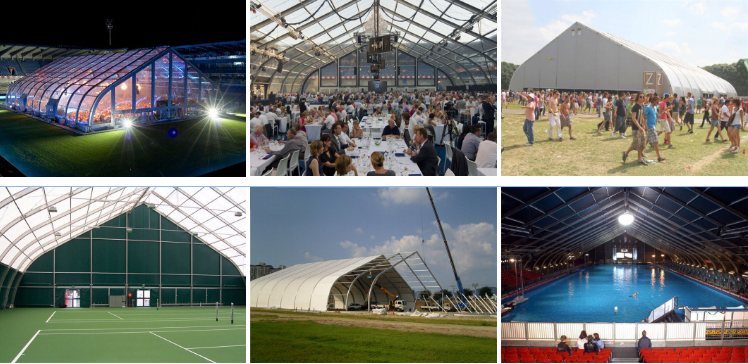

Below are aluminium curve tent we made for other client for different application, event, wedding, party, catering,
 exhibition,storage,sports event, football field, tennis court, swimming pool etc.

Product Parameters

Aluminium A frame marquee tent Size

The size of our aluminium marquee tent could be 3m to 60m in width in unlimited 3m or 5m times length. Please check below for details.

HENG NUO TENT Item NO.	Width	Bay	Side Height	Ridge height	Main Frame Profile	Wind Load	Snow Load
HNS3	3m	3m	2.3m	2.85m	60x48mm	100km/h	0.3KN/M2
HNS4	4m	3m	2.3m	3.05m	60x48mm	100km/h	0.3KN/M2
HNS5	5m	3m	2.5m	3.45m	82x48mm	100km/h	0.3KN/M2
HNS6	6m	3m	2.5m	3.65m	82x48mm	100km/h	0.3KN/M2
HNS8	8m	3m	2.5m	4.05m	82x48mm	100km/h	0.3KN/M2
HNS9	9m	3m	2.5m	4.2m	100x48mm	100km/h	0.3KN/M2
HNS10	10m	5m	3m	4.9m	122x68mm	100km/h	0.3KN/M2
HNS12	12m	5m	3m	5.85m	122x68mm	100km/h	0.3KN/M2
HNS15	15m	5m	3m	5.35m	166x88mm	100km/h	0.3KN/M2
HNS18	18m	5m	3m	5.8m	166x88mm	100km/h	0.3KN/M2
HNS20	20m	5m	4m	7.2m	203x112mm	100km/h	0.3KN/M2
HNS22	22m	5m	4m	7.45m	203x112mm	100km/h	0.3KN/M2
HNS25	25m	5m	4m	7.95m	203x112mm	100km/h	0.3KN/M2
HNS30	30m	5m	4m	8.7m	250x120mm	100km/h	0.3KN/M2
HNS40	40m	5m	4m	10.2m	340x170mm	100km/h	0.3KN/M2
HNS50	50m	5m	4m	11.9m	340x170mm	100km/h	0.3KN/M2
HNS60	60m	5m	4m	13.5m	340x170mm	100km/h	0.3KN/M2

Aluminium A frame Marquee Tent

Please check below for the details of material for our geodesic dome tent.

Frame material	Hard pressed anodized aluminum alloy 6061/T6
White Roof cover material	850gsm blockout PVC coated fabric,waterproof,fire-retardant,UV-resistance
Sidewall material	650gsm translucent PVC coated fabric,waterproof,fire-retardant,UV-resistance
Connector material	Hot Dip Gavanized Steel

Company Profile

Packing & Delivery

Aluminium A frame Marquee Tent Package

aluminum frame packed in stretch film

roof and sidewall in professional PVC carry bag

Installation

About our Aluminium A frame marquee tent installation.

We will provide you installation drawing and installation video to teach you install step by step. If install big marquee tent, we can accept your invitation to go to your country install the tent for you, we hve a strong installation team to serve you.

OUR ALL TENT STYLE

Heng Nuo Tent Factory manufacture aluminium A frame tent, pagoda tent, geodesic dome tent, arcum tent, curve tent, polygonl tent,high peak mixed tent, multi side tent, hexagonal pagoda tent , double decker tent etc.
